Overview
The ultimate in personal productivity
Gives you even more time back
It can be hard work keeping a business in shape, and everyone can do with a bit more time back at the end of the day.
The ScanSnap iX1600 was designed to help anyone achieve maximum productivity, with advanced organisational features that give you greater control, effortlessly.
Flexible and intuitive
The iX1600's 4.3-inch LCD touchscreen delivers the future of scanning now. Instead of choosing what you want to do each time you scan a document, with one touch, the pre-defined profile buttons will automatically create the required file type and save it to your preferred destination. The touchscreen also allows for colour-coded button sets for up to five teammates, making it the smarter way to work together using the same device.
Plus, you can quickly set up and use the iX1600 anywhere you have Wi-Fi without the need for a PC. And a streamlined scanning process lets you scan batches of different document types with no need to prep and sort, turning lengthy chores into quick, even enjoyable jobs.
The all-in-one ScanSnap Home software brings together all your favourite functions to help you power through your scanning in no time. By making your paperwork effortless, you can finally focus your day on what matters most.
Wherever you call your desk, the iX1600 offers next generation scanning performance and the ultimate in personal productivity to connect your worlds with one-touch.
Features
Powerful, efficient performance
Ultra-fast set-up and start-up
Scanners should make your life easier, not slow you down. Offering the ultimate in time-saving performance, the ScanSnap iX1600’s simple setup will have you converting your papers into useful digital files in no time. Once set up, simply open the cover and your ScanSnap is ready to go.
Maximum productivity
Designed for busy people, the iX1600 makes your working day a breeze. In addition to scanning at a fast 40 pages per minute, the two-sided (Duplex) scanning function will have you digitising paperwork in half the time.
The large Automatic Document Feeder holds up to 50 sheets, freeing you from the tedious job of manually inputting individual pages, so you can speed through your work even faster. Professional grade feeding technology and ultrasonic sensors mean the iX1600 handles multi-page documents with ease. The scanner can be set to alert you if two or more pages are fed through the scanner at once, delivering peace of mind that not a single page of your documents will get lost along the way.
And the iX1600 Receipt Guide will also save you time otherwise spent prepping and feeding individual receipts and business cards. After all, everyone has better things to do with their day.
Automated, intuitive operation
Quickly and easily convert the papers you have into the applications you use. The 4.3-inch intuitive touchscreen lets you carry out pre-programmed scans, all at the touch of a button.
Whether you’re creating searchable PDFs, editable Word, Excel or Powerpoint files, or extracting information from receipts or business cards, the iX1600 will automatically scan and save your documents to the pre-defined destination of your choice.
Total document management
Intuitive ScanSnap Home software
ScanSnap Home software (included) allows you to easily manage, edit, and use scanned data from documents, receipts, business cards, photos and more.
Documents can be automatically recognised grouped and saved according to document type while folders, tags, and keywords allow you to organise, search, and find information more easily than ever before.
Flexibility at your fingertips

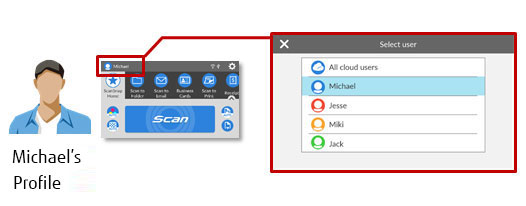

For small teams, the ability to share a single device among 5 users will be a game-changer for your productivity. Each can have their own set of colour-coded scanning profile buttons.

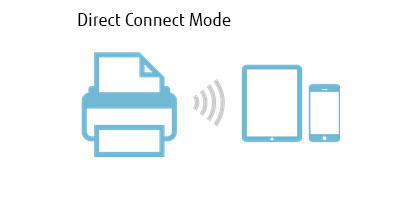

Wi-Fi or USB provide flexible deployment options, or alternatively, you can scan a PDF directly to your mobile device via Wi-Fi in Direct Connect mode.
Quick Menu for instant scanning
When using a PC or laptop, activating the Quick Menu function allows you to scan first and then decide which application you want to send your document to, which comes in handy for ad-hoc scanning. You’ll find most of the applications you know and use ready for you in ScanSnap Home, and can always add more to the Quick Menu if required.
- Automated productivity.
- Intuitive touchscreen. Large, 4.3” screen lets you execute scans with one touch.
- Team efficiency. Colour-coded, pre-defined scanning buttons for up to 5 users.
- Powerful software: Easily search, manage, and retrieve your scanned documents.
Specifications
| ScanSnap iX1600 (White / Black) | ||
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex | |
| Scanning Speed*1 (A4 portrait) | Auto mode*2 | Simplex / Duplex: 40 ppm |
| Normal mode | Simplex / Duplex: 40 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | |
| Better mode | Simplex / Duplex: 40 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) | |
| Best mode | Simplex / Duplex: 40 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) | |
| Excellent mode*3 | Simplex / Duplex: 10 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) | |
| Scanning Color Mode | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*3 detection) | |
| Image Sensor | Color CIS x 2 (Front x 1, Back x 1) | |
| Light Source | 3 color LED (Red / Green / Blue) | |
| Optical Resolution | 600 dpi | |
| Document Size | Normal Scan*4 | Minimum 50.8 x 50.8 mm (2 x 2 in.) Maximum 216 x 360 mm (8.5 x 14.17 in.) |
| Manual Scan | A3, B4, 279 x 432 mm (11 x 17 in.) | |
| Long Paper Scanning*5 | 3,000 mm (863 mm in 32-bit) Smart Device: 863 mm (Duplex), 1,726 mm (Simplex) |
|
| Paper Weight (Thickness) | 40 to 209 g/m2 (11 to 56 lb) A8 or less: 128 to 209 g/m2 (34 to 56 lb) Cards: 0.76 mm or less (Compliant with the ISO7810 ID-1 type) (Includes embossed cards in landscape orientation) |
|
| ADF Capacity*6 | 50 sheets (A4, 80 g/m2 or 20 lb) | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection | |
| Interface | USB | USB3.2 Gen1x1 / USB2.0 / USB1.1 (Connector Type: Type-B)*7 |
| Wi-Fi | IEEE802.11a/b/g/n/ac Frequency band: 2.4 GHz / 5 GHz*8 |
|
| Wi-Fi Interface | Connection Mode | Access Point Connect Mode (Infrastructure mode)*9 Direct Connect Mode (Ad-hoc mode)*10 |
| Security | WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TLIP / AES), WPA2-PSK (AES) | |
| Easy Installation | WPS2.0 | |
| Rated Power (EIRP) (North America) | 2.4 GHz: 11b: +23.5dBm / 11g: +22.0dBm / 11n/ac: +22.0dBm (20 / 40MHz) 5 GHz*8: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz) |
|
| Rated Power (EIRP) (Others) | 2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz) 5 GHz*8: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz) |
|
| LCD | 4.3 in. color TFT touch screen | |
| Power Requirements | AC 100 to 240 V, 50 / 60 Hz | |
| Power Consumption | Operating Mode | 17 W or less |
| Sleep Mode | USB connected: 1.5 W or less Wi-Fi connected: 1.6 W or less |
|
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 80% (Non-condensing) | |
| Environmental Compliance | ENERGY STAR®, RoHS | |
| Dimensions (W x D x H)*11 | 292 x 161 x 152 mm (11.5 x 6.3 x 6.0 in.) | |
| Weight | 3.4 kg (7.5 lb) | |
| Driver | ScanSnap specific driver Windows®: Does not support TWAIN / ISIS® macOS: Does not support TWAIN |
|
| Software*12 | ScanSnap Home (All-in-one document management software/driver) ScanSnap Manager (Conventional driver) Kofax Power PDF Standard (Windows) Kofax Power PDF Standard for Mac (Mac) ABBYY FineReader for ScanSnap™ |
|
| Included Items | Safety Precautions, AC cable, AC adapter, USB cable, Receipt Guide | |
- Scanning speeds may vary due to the system environment used.
- Scans will be made in "Best mode" if shorter sides are less than 105 mm and in "Better mode" if not.
- Available only when connecting to a computer.
- A3 scans are possible with use of A3 carrier sheets.
- Available in all modes except for "Excellent mode".
- Maximum capacity varies, depending upon paper weight.
- Some computers do not recognize the ScanSnap when it is connected to a USB 3.2 Gen1x1 /3.0 port. In this case, please use a USB 2.0 cable.
- Availability of 5 GHz Wi-Fi may vary depending on region.
- Access Point Connect Mode requires a Wi-Fi access point or router.
- 5 GHz Wi-Fi is not available with Direct Connect Mode.
- Excluding the stacker and other external attachments.
- Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.
System Requirements for PC
| Compatible Operating Systems | Windows | ||
|---|---|---|---|
| 10 / 8.1 (32-bit / 64-bit)*1 |
7 (32-bit / 64-bit) |
||
| Driver / Applications*2 | ScanSnap Home*4 | Supported | Supported |
| ScanSnap Manager | Supported | Supported | |
| Kofax Power PDF Standard*5 | Supported | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | |
| Hardware Requirements*3 | CPU*6 | Intel® Celeron 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | |
| Memory Capacity*6 | 2 GB or more (Recommended: 4 GB or more) | ||
| Display Resolution | 1,024 × 768 pixels or more | ||
| Disk Capacity*7*8 | 3.8 GB or more of free hard disk space | ||
- Operate Windows in desktop mode. ScanSnap scanners do not run with Windows® 10 ARM-based PCs such as Surface® Pro X (Microsoft®).
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Please refer to the included license certificate to download the software.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
- Indicated disk capacity requirements apply when downloading ScanSnap Home.
- .NET Framework 4.7 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for Mac
| Compatible Operating Systems | macOS v.11.0 or later | macOS v.10.12.4 or later | |
|---|---|---|---|
| Driver / Applications*1 |
ScanSnap Home*3 | Supported | Supported |
| ScanSnap Manager | Supported | Supported | |
| Kofax Power PDF Standard for Mac*4 | Supported | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | |
| Hardware Requirements*2 |
CPU*5*6 | Intel® Core™ i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | |
| Memory Capacity*6 | 2 GB or more (Recommended: 8 GB or more) | ||
| Display Resolution | 1,024 x 768 pixels or more | ||
| Disk Capacity | 2.0 GB or more of free hard disk space | ||
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Please refer to the included license certificate to download the software.
- The ScanSnap device also operates with Apple Silicon-based Mac computers. Please refer to the ScanSnap Support site for the latest information.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for iOS / Android™ / Kindle Fire (ScanSnap Connect Application)
Please refer to ScanSnap Connect Application specifications page.
|
